Components of Power System

Components of Power System: It is the networking of electrical components that may deploy to transfer, supply and usability of power. In fact, the grid will mainly split into the generators that provide the transmission system that carries into the load centers of the distribution process. As well as, it consists various three phases are having power system trends they are AC power in aircraft, automobiles and also electric rail sectors.

Seven Basic Components of Power System

A Power System is a complex and integrated Components of Power System network designed to generate, transmit, distribute, and manage electrical energy efficiently and safely. Whether in industrial setups, urban grids, or renewable energy installations, each element of the power system plays a vital role in ensuring continuous and reliable power flow.

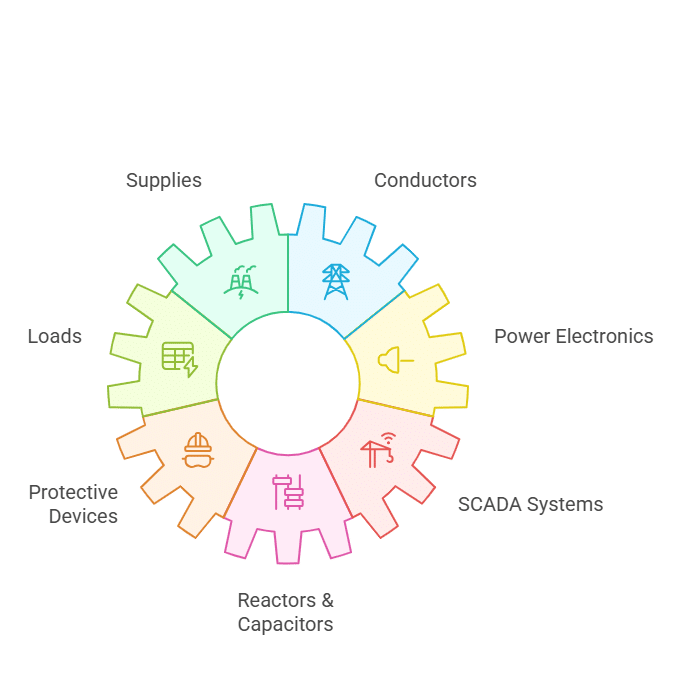

Below are the key components of a Power System, each of which contributes to the operation, stability, and protection of the overall electrical infrastructure.

Reactors and Capacitors

Reactors (Inductors) and Capacitors are crucial for controlling voltage levels, improving power factor, and managing reactive power within a power system.

Reactors:

• Used to limit short circuit currents and reduce voltage fluctuations.
• Installed in series with lines or equipment to control current surges and harmonics.

Capacitors:

• Installed to improve power factor, particularly in systems with inductive loads.
• Used in capacitor banks to provide reactive power support and stabilize voltage levels.

Together, these elements help in maintaining the quality and stability of the power supply across the network.

Supplies (Power Generation Units)

Power supplies or generation sources are the starting point of any power system.

Types:

• Conventional: Thermal, hydro, nuclear power stations.
• Renewable: Solar panels, wind turbines, biomass units.

These power sources are responsible for Components of Power System generating electricity which is then fed into the transmission and distribution systems. In modern Power Systems, hybrid generation combining conventional and renewable sources is increasingly common.

SCADA System (Supervisory Control and Data Acquisition)

The SCADA system is the brain of modern electrical networks. It allows operators to monitor, control, and automate various processes across the power system from a centralized location.

Key Functions:

• Real-time monitoring of voltage, current, and frequency.
• Remote control of circuit breakers, transformers, and loads.
• Data logging and fault analysis.

SCADA enhances operational efficiency, safety, and responsiveness in large-scale Power Systems, including smart grids and substations.

Conductors

Conductors are the physical pathways Components of Power System through which electric power flows from generators to end-users.

Types:

• Overhead lines (Aluminum Conductor Steel Reinforced – ACSR)
• Underground cables (XLPE, PVC-insulated cables)

They form the backbone of both transmission and distribution networks. Proper sizing and selection are crucial for minimizing losses and maintaining voltage levels over long distances.

Power Electronics

Power electronics are used to control and Components of Power System convert electrical power efficiently. These components are central to modern Power System applications, especially in renewable integration and smart grid technologies.

Examples:

• Inverters (DC to AC)
• Converters (AC/DC, DC/DC)
• Controllers and Gate Drivers (PWM control)

They allow precise control of power flow, enabling advanced functionalities like variable-speed drives, power factor correction, and energy storage integration.

Loads

Loads refer to the devices and systems that Components of Power System consume electrical energy. They can be:

Types:

• Residential: Appliances, lighting, air conditioning
• Commercial: Office equipment, elevators
• Industrial: Motors, furnaces, CNC machines

Load management is essential in Power Systems to balance demand and supply, avoid overloads, and plan future capacity.

Power System Project Ideas for Engineering Students

Exploring the Role of Components of Power System in Real-Time Applications

The field of Power Systems plays a critical role in the Components of Power System generation, transmission, distribution, and control of electrical energy. Final year electrical and electronics engineering students often choose this domain for their academic projects due to its industry relevance, strong fundamentals, and integration with automation, renewable energy, and robotics.

Power System of Components of Power System Projects cover a broad spectrum, including maintenance, control mechanisms, smart device interfacing, and modern energy systems. These projects directly rely on the Components of Power System—including supplies, conductors, power electronics, loads, SCADA systems, and protection devices.

Why Are Components of Power System Important?

Before diving into project ideas, it’s essential to understand the core Components of a Power System:

• Supplies – Energy generation sources like solar, wind, or traditional grids.
• Conductors – Mediums (like transmission lines) through which energy flows.
• Power Electronics – Used for converting and controlling electrical power.
• Loads – The end devices that consume power.
• SCADA Systems – For real-time control and monitoring.
• Protective Devices – Circuit breakers, relays, and fuses to ensure safe operation.
• Reactors and Capacitors – For power factor correction and voltage control.

These components are vital in every power system project, as they form the foundation of energy flow and control mechanisms.

List of Power System Project Ideas

Each of the Components of Power System following projects utilizes various Components of Power System and serves as an excellent opportunity for students to gain hands-on experience with modern power technologies.

Substation Control and Monitoring System via GSM

• Description: Develop a GSM-based system to remotely monitor and control substations. It integrates real-time alerts for fault detection and voltage fluctuations.
• Components Used: SCADA system, GSM modem, protective devices, power electronics.

Electrical Appliance Control via Android App

• Description: Interface household electrical devices with Android smartphones using IoT modules.
• Components Used: Loads, power electronics, microcontrollers, wireless communication.

High Power Point Tracking in Photovoltaic Solar Generation

• Description: Implement MPPT (Maximum Power Point Tracking) to improve the efficiency of solar energy systems.
• Components Used: Power supplies (solar), DC-DC converters, capacitors, controllers.

Traffic Control System Using SCADA and PLC

• Description: Design an automated traffic management system using SCADA for visualization and PLCs for real-time control.
• Components Used: SCADA, sensors, loads (signal lights), controllers, conductors.

Automatic Power Factor Correction (APFC) for Industrial Load

• Description: Develop a system to maintain the desired power factor and reduce energy penalties in industrial environments.
• Components Used: Capacitor banks, power factor controller, SCADA, relays.

Brushless DC Motor Control Using Loop Feedback

• Description: Design a closed-loop control system for efficient operation of BLDC motors.
• Components Used: Power electronics (MOSFETs/IGBTs), loads (motors), microcontroller, feedback sensors.

Automatic Hall Light Controller Using IR Sensors

• Description: Implement an IR-based automatic light switching system for energy conservation in hallways or rooms.
• Components Used: IR sensors, loads (lighting), controllers, power supply.

Role of a Power Electronics Engineer in Modern Electrical Systems

Mastering the Components of Power System for Innovation and Efficiency

Power Electronics is the engine driving innovation in modern Components of Power System power systems. Engineers in this field are responsible not only for designing efficient power conversion solutions but also for ensuring the integration of various Components of Power System into a cohesive and intelligent infrastructure.

Their role has become increasingly vital with the global shift toward electrification, renewable energy, and automation.

Key Functional Areas of a Power Electronics Engineer

1. System Architecture and Design

Power Electronics Engineers play a pivotal role in designing system architecture that connects all the major power system components—from the energy source (supply) to the load.

• Design of inverters, converters, and controllers.

• Integration of SCADA systems for remote access.

• Coordination of reactors and capacitors for reactive power management.

2. Control Systems and Firmware Development

Beyond hardware, engineers are involved in control algorithm development:

• ¹Implementing real-time embedded control for AC/DC and DC/DC converters.

• Managing feedback loops to stabilize system voltage and frequency.

• Programming PWM controllers to modulate signal flow to loads and conductors.

This software-hardware fusion ensures that systems respond adaptively to real-time conditions.

3. Thermal and Electromagnetic Management

A major duty is ensuring thermal and electromagnetic stability:

• Calculating heat sinks and ventilation requirements.

• Ensuring PCB layout prevents EMI (electromagnetic interference).

• Selecting power electronic components that can withstand temperature, voltage, and current stress.

4. Grid Integration and Renewable Energy Support

Engineers must now develop solutions compatible with smart grids and renewable sources:

• Developing MPPT algorithms for solar PV systems.

• Integrating wind inverters with utility networks.

• Designing synchronization circuits for hybrid generation systems.

All these systems depend on the efficient management of key components like transformers, breakers, and sensors.

5. Regulatory Compliance and Standards

Power electronics systems must comply with international standards:

• Ensuring IEC, IEEE, and UL compliance for electrical safety.

• Designing systems that accommodate protective devices and allow for safe fault isolation.

• Documenting system behavior under stress tests for certification.

This ensures that all power system components meet regulatory and safety expectations.

6. Real-Time Monitoring and Fault Diagnosis

With the integration of SCADA systems, engineers monitor:

• Current flow, voltage drops, harmonic distortion.

• Sudden disconnections or overloads in loads or supply lines.

• Fault logs for circuit protection and preventive maintenance.

They use this data to fine-tune performance and improve future designs.

Responsibilities and Duties of a Power Electronics Engineer

With Emphasis on the Components of Power System

The field of Power Electronics Engineering lies at the heart of modern electrical and energy systems. From electric vehicles to renewable energy integration and industrial automation, power electronics plays a crucial role in optimizing energy conversion and ensuring system stability.

For students involved in Power Electronics Based Projects or professionals stepping into the industry, understanding the core Components of Power System is vital. Each responsibility of a power electronics engineer is deeply connected to how these components work together to form a safe, efficient, and intelligent power network.

Understanding the Components of Power System

Before exploring the responsibilities, let’s briefly recall the key components of a power system:

1. Supplies – Power sources like thermal plants, solar PV, and wind turbines.

2. Conductors – Transmission lines and cables that carry power.

3. Loads – Devices and systems that consume power (motors, lighting, appliances).

4. Power Electronics – Inverters, converters, controllers used for power conversion and control.

5. Protective Devices – Circuit breakers, relays, surge protectors that safeguard the system.

6. SCADA Systems – Software and hardware platforms for real-time monitoring and control.

7. Reactors & Capacitors – Components for managing voltage levels and improving power factor.

These form the backbone of any real-world Power Electronics Project, and every engineering duty is centered around these core elements.

Responsibilities and Duties of a Power Electronics Engineer

1. Analyzing Technical Specifications

An engineer must interpret and evaluate electrical requirements based on project goals. This includes:

• Understanding voltage, current, frequency, and load demands.

• Determining how conductors, power supplies, and loads interact under various conditions.

• Assessing compatibility with protective devices and control systems.

This analysis ensures the design aligns with performance, efficiency, and safety standards.

2. Simulating Circuits on Software Tools

Simulation is a critical phase before real-world implementation. Engineers must use software like MATLAB, PSpice, or Proteus to:

• Design and validate power conversion circuits (AC-DC, DC-AC, DC-DC).

• Simulate reactor-capacitor networks, protection behavior, and load response.

• Model SCADA-based monitoring to visualize how data flows through the system.

Simulations help minimize risk and reduce costs in Power System development.

3. Developing Schematics on CAD Platforms

Using tools such as Altium Designer, KiCad, or OrCAD, engineers create detailed electrical schematics and layouts that incorporate:

• Power electronics components like IGBTs, MOSFETs, gate drivers.

• SCADA interface modules (for remote control or feedback loops).

• Proper placement of protective devices and conductor paths for efficient current flow.

A well-structured schematic is essential for accurate PCB fabrication and real-time performance.

4. Building and Testing Prototypes

After design, engineers develop working prototypes to evaluate system behavior under practical conditions. This includes:

• Assembling converter/inverter circuits with heat sinks and filters.

• Integrating loads and capacitive/reactive components for full system simulation.

• Testing how real-world supplies (e.g., grid or solar) interact with control and protection circuits.

This step validates the interaction between multiple Components of Power System in one cohesive unit.

5. Debugging Circuit Boards

Engineers must troubleshoot hardware to identify and fix:

• Faulty power components (MOSFETs, diodes, ICs).

• Improper signal routing or voltage spikes.

• Communication errors between SCADA modules and sensors.

Debugging ensures that the entire power system operates reliably, especially in high-power applications like motor drives or renewable energy setups.

6. Understanding Component Placement and PCB Routing

Proper PCB design directly affects system efficiency, noise immunity, and thermal stability. Engineers must:

• Optimize trace routing for high-current paths from power supplies to loads.

• Isolate control signals from switching noise (especially in high-frequency converters).

• Strategically place capacitors, reactors, and protection devices for smooth operation.

This meticulous design ensures system integrity and compliance with electrical safety norms.

Career Path of a Power Electronics Engineer

Skills, Roles, and Real-World Applications in Power Systems

In the evolving landscape of Components of Power System modern energy systems, Power Electronics Engineers are at the forefront of innovation. They design, develop, and implement systems that regulate and convert electrical power efficiently—supporting applications from industrial drives and EVs to smart grids and renewable energy integration.

At the heart of their work is a deep understanding of the Components of Power System, which are essential for maintaining power stability, reliability, and efficiency.

What Does a Power Electronics Engineer Do?

The primary role of a Power Electronics Engineer involves designing and optimizing devices and systems that handle high-voltage or high-current power. These systems interact with almost every part of the power infrastructure, including:

• Generation systems (solar panels, wind turbines, diesel generators)

• Transmission networks (conductors, substations)

• Distribution systems (smart meters, transformers)

Emerging Applications of Power Electronics in Power Systems

Power Electronics Engineers are also leading innovation in the following areas:

• Electric Vehicle Charging Infrastructure
  (DC fast chargers, onboard converters, battery management)

• Smart Energy Storage Systems
  (Bidirectional inverters, battery-to-grid interfaces)

• Industrial Drives and Automation
  (Sensorless motor control, regenerative braking)

• Power Quality Improvement
  (Harmonic filters, FACTS devices, PFC units)

Each of these systems relies heavily on conductors, power conversion hardware, protection circuitry, and remote control platforms—all under the umbrella of Components of Power System.

Conclusion

Final year projects in the field of Power Systems offer students a deep understanding of how theoretical concepts translate into practical applications. By engaging with real-world problems like energy efficiency, automation, and control, students learn to work with the critical Components of Power System such as SCADA, conductors, power converters, and protective devices.

Whether you’re developing a smart substation, designing an IoT-based controller, or implementing renewable energy solutions, these projects prepare you for a career in power systems engineering, automation, or energy management.



FAQs: Power System Projects

1. What are the most essential components required for Power System Projects?

The most critical components include power supplies (generation units), power electronics (converters/inverters), conductors (wires or transmission lines), SCADA systems, protective devices, and loads.

2. Can I use SCADA in a student-level project, or is it too complex?

Yes, SCADA can be used in simplified forms. Student-level kits or simulation platforms like LabVIEW or MATLAB allow you to implement basic SCADA functionalities for project demonstration.

3. What is the purpose of Automatic Power Factor Correction (APFC) in industries?

APFC systems help maintain an optimal power factor, reducing energy losses and avoiding penalties from utility companies. They also stabilize voltage levels for better equipment performance.

4. Does Elysium Pro provide guidance for GSM or SCADA-based Power System Projects?

Yes, Elysium Pro offers complete support, including project kits, code development, simulation, and hardware implementation for GSM, SCADA, and PLC-integrated projects.

5. How important is simulation software in Power System Projects?

Simulation tools help validate the design before hardware implementation. Software like MATLAB, Multisim, and Proteus helps analyze current flow, fault behavior, voltage drops, and system stability.

Final Thoughts

In this field, they are so many job opportunities are able in core sectors for electronics engineers. Therefore, a device will contain the different electronic cards that may require depending on the components several levels of both the currents and also voltages.

1. ↩︎
